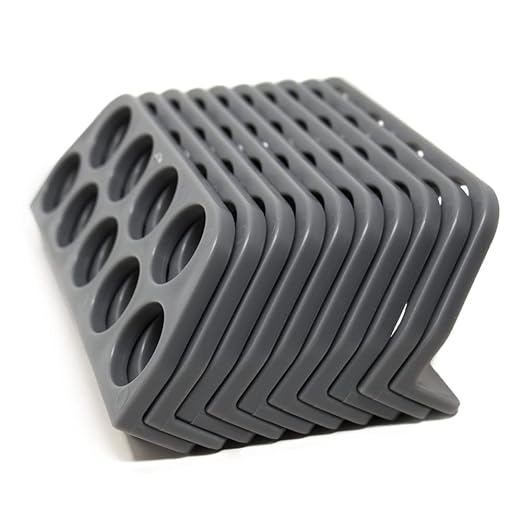

Main Body: 2 1/2 “ x 6 3/8“, Plate: 1 1/8“ x 6 3/8” Hole Diameter: 1”
Patented design, ETL listed, conforms to UL STD 2239, Certified to CSA STD C22.2 No. 18.4, Accepted by IEAI
Follows the same guidelines as typical wire fill calculation
Leaves room for future expansion

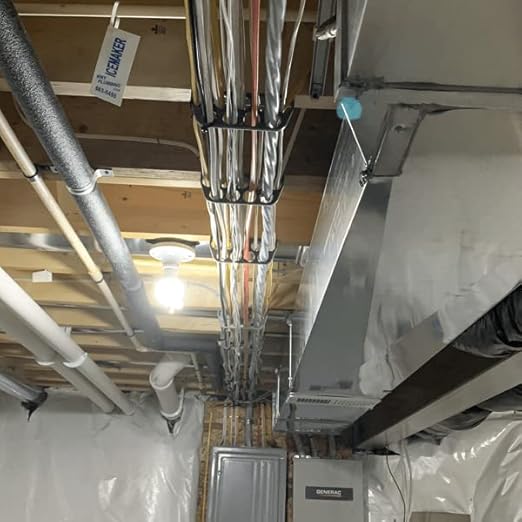

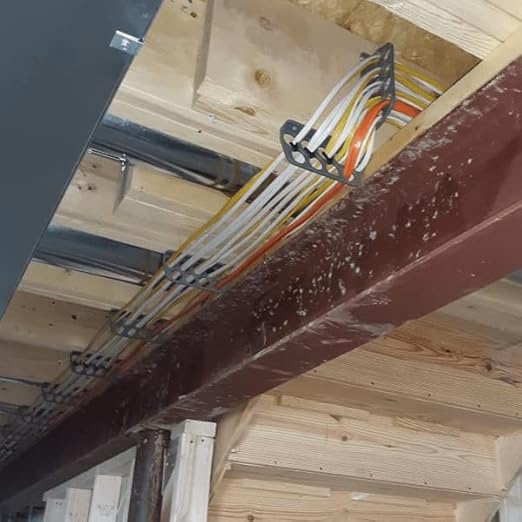

Maximum distance between each Cable Chase Wire Bracket under floor joists is 16″ (when using under floor joists, the maximum distance, on one side from any wall, joist, pipe or ductwork is 12″)
